[Global] Pool Vacuum Question

[Parlone Richard]

4 loop PWR, single unit 1200 MW(e) with SFP.

What is the manufacturer of water vacuum systems that you use at your site? - Installed FSPCUS and RFPCUS are original Westinghouse design; portable units are Tri-Nuc.

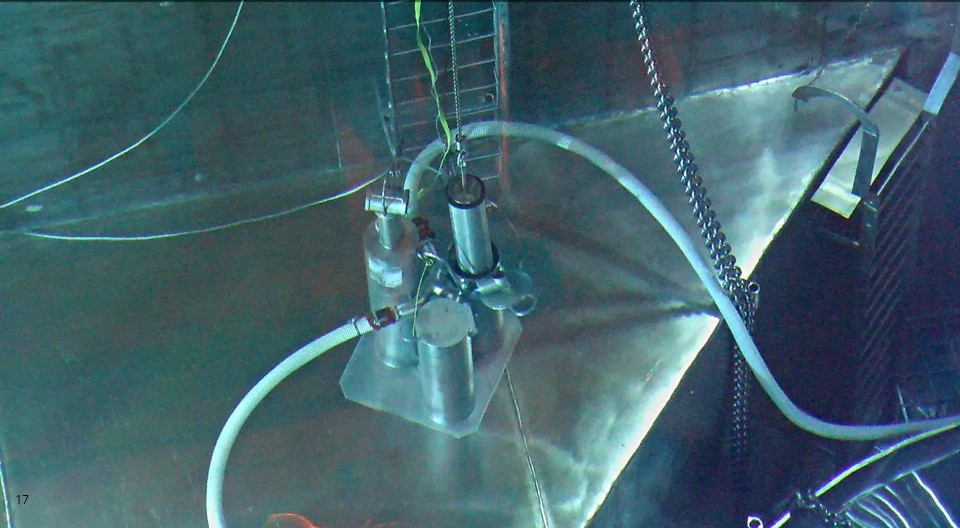

How many and what sizes do you have in each of your pools during an outage? - FSPCUS and RFPCUS are continuously run (filtration/demineralizer). We have a twin-filter Tri-Nuc unit as shown in the Refuel Pool for targeted clean-up during the outage, with a surface skimmer running (I'll have to dig up the gpm capacity). We have a smaller Tri-Nuc unit in the FSP for other clean-up work (mostly dry fuel store campaign related). Filter Transfer Shield now used for filter handling into shielded drum.

Do you use mobile vacuum system demineralizer beds within your Refuel/Spent Fuel pools? N - installed FSPCUS and RFPCUS demins operating continuously only. Mobile systems are filtration only.

Who at your site is responsible for the maintenance, deployment and use of the vacuum equipment? Maintenance, deployment and use - Operations Logistics (site Fuel Route) team, with use by the contract Framatome refuel team. RP/Decon support deployment, removal and maintenance.

Richard Parlone
Head of Radiological Protection
Technical & Safety Department

EDF Energy Generation
Sizewell B Power Station, Nr. Leiston, Suffolk, IP16 4UR
Tel - (+44) 01728 653750 Internal - 718 3750
richard.parlone at edf-energy.com<mailto:richard.parlone at edf-energy.com>
[cid:image002.png at 01D5C7C4.D807E090]

edfenergy.com<https://www.edfenergy.com/about>

Proud sponsors of Prostate Cancer UK
prostatecanceruk.org<http://www.prostatecanceruk.org/>


From: Global <global-bounces at list.rpalara.org<mailto:global-bounces at list.rpalara.org>> On Behalf Of Hutchinson, Duane
Sent: Monday, September 26, 2022 12:58 PM
To: global at list.rpalara.org<mailto:global at list.rpalara.org>
Subject: [Global] Pool Vacuum Question

Caution: This is an external email. Please take care when clicking links or opening attachments. When in doubt, contact the Technical Assistance Center at 361-972-7000 or x7000.

Hello RP-ALARA Association Team,
Do you use water Vacuum/Filtration Systems at your site in your Spent Fuel and Refuel Pools?  Y/N

What is the manufacturer of water vacuum systems that you use at your site?

How many and what sizes do you have in each of your pools during an outage?

Do you use mobile vacuum system demineralizer beds within your Refuel/Spent Fuel pools? Y/N

Who at your site is responsible for the maintenance, deployment and use of the vacuum equipment?


Thank you very much in advance RP ALARA Association Team and have a great day,

Duane

Duane Hutchinson
Turkey Point Nuclear
Florida Power & Light
Radiation Protection
RP Section Supervisor / RAM Shipping
9760 SW 344th Street
Florida City, Florida  33035

duane.hutchinson at fpl.com<mailto:duane%20_hutchinson at fpl.com>

305.246.6769 (Office)
305.878.0447 (Cell)
