[Global] Fuel Transfer System

[Kennedy, Kyle Anthony]

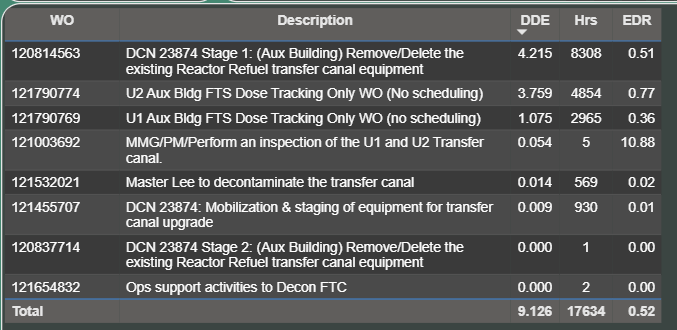

SQN performed this in 2020/2021 along with a full transfer system upgrade. Below are snippets of a survey for the cart/basket removal and an overall dose performance. I will have to dig into the dose performance to figure out what part was the actual cart & basket replacement, but off the hip it looks like 3.521 Rem and 3,883 man-hours for that portion. Also attached are the TVA removal procedure and the Framatome installation manual.

[cid:image001.png at 01DC4904.528C1040]

[cid:image002.png at 01DC4904.528C1040]


From: Global <global-bounces at list.rpalara.org> On Behalf Of kevin.licklider--- via Global
Sent: Wednesday, October 29, 2025 9:51 AM
To: global at list.rpalara.org
Subject: [Global] Fuel Transfer System

This is an EXTERNAL EMAIL from outside TVA. THINK BEFORE you CLICK links or OPEN attachments. If suspicious, please click the “Report Phishing” button located on the Outlook Toolbar at the top of your screen.
Happy Outage Season everyone,

One quick question:

Has anyone that is a Westinghouse PWR plant ever replaced the fuel transfer cart & fuel assembly basket?  North Anna is planning on doing this in the Fall of 2026.
